Big Commercial Production Soft Gelatin Capsule Filling Machine

Product Details

Place of Origin: China

Brand Name: JANGLI

Certification: CE FDA ISO

Model Number: JL-250II

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 50,000 - 100,000

Packaging Details: vacuum inner packing, plywood outer packing

Delivery Time: 30 days

Payment Terms: T/T, L/C

Supply Ability: 100 sets per year

Get Best Price
Contact Now
Specifications
High Light:

Commercial Production soft gelatin capsule filling machine

,

8rpm soft gelatin capsule filling machine

,

SS316L soft gel capsule manufacturing machine

Die Roller Size:
150x250mm
Plungers:
20 Pcs
Material:
SS304 And SS316L
Running Speed:
0-8rpm
Filling Volume:
0-3500ml
Packing:
Vacuum Wooden
Weight:
1500kg
Size:
2200x800x2200mm
Control Way:
HMI Siemens
Die Roller Size:
150x250mm
Plungers:
20 Pcs
Material:
SS304 And SS316L
Running Speed:
0-8rpm
Filling Volume:
0-3500ml
Packing:
Vacuum Wooden
Weight:
1500kg
Size:
2200x800x2200mm
Control Way:
HMI Siemens
Description
Big Commercial Production Soft Gelatin Capsule Filling Machine

JL-250II big 10 inch popular pharmaceutical Softgel capsules filling Machine for all kinds medicine



Why Softgel capsules filling Machine is becoming more and more popular?

Softgel is a new medicine dosage form after tablets, hard capsules and injection. It can inject and encapsulate oily functional solution into gelatin films and become different sizes and shapes closed capsule. Softgel capsules have the following advantages:



1. After disintegration, the active substance will be absorbed directly from intestine, no need dissolve process, so it has fast absorption.

2. The content of filling is accurate

3. It has high biological utilization, so that the doses can be lowered.

4. Good stability for active substance, not easy to absorb moisture.

5. Good tightness, so that the bad smell of medicine can be covered.

6. Easy to swallow and beautiful appearance.

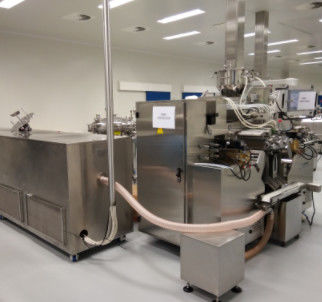

Big Commercial Production Soft Gelatin Capsule Filling Machine 0



JL-250II Softgel capsules filling Machine Features:



  • Water-bath Injector


The temperature fluctuated in +/-0.1°C, save 14% gelatin; improve 1.5% rate of finished products; and save the maintained cost and time.


  • Computer adjust filling material packing volume


Computer control the injecting pump, the packing volume of the capsule can be adjusted on the PLC Touch Screen of Softgel capsules filling Machine, no need to adjust manually, improve the precision of medicine injection volume, and save more medicine and material cost


  • Hardness of Wendersteg and stepping bar of the injection pump reaches to HCR0-65, durable in use. So our Softgel capsules filling Machine injection pump is very suitable for liquid calcium, herbal suspension, ect softgel products making. Even if the customers use this machine to manufacture liquid calcium, the injecting pump will not easy to wear out.


  • Micro-Lubrication System(Lower paraffin oil consumption and production cost)


This Softgel capsules filling Machine can adjust the lubricating oil quantity automatically according to rotating speed of the main machine. No need to adjust lubricating oil quantity manually.


  • Pneumatic die roller pressing system
  • There is water cooling system inside the machine, no need chiller.
  • The injection wedge can be lowered and lifted automatically.

  • The capsule stripper can be controlled separately, and the capsule stripper can turn forward and
backward.

  • The holes of the left and right main axis of this Softgel capsules filling Machine are processed with extreme accuracy on the boring machine
imported from Switzerland. Though the die roll has been extended in length, can be keep high
coaxial degree that guarantees the smooth seam and finished product rate of the softgel capsule.


  • The spreader boxes adopt Photoelectric Technology, so the gelatin liquid level can be adjusted automatically.

  • The injection pump and machine head adopted external drive, which means the injecting pump is independent seal, and the lubricating oil inside the injecting pump will not go into the machine head

Big Commercial Production Soft Gelatin Capsule Filling Machine 1



Softgel capsules filling Machine Production Process:

Step 1. Gelatin Melting

Step 2. Medicine Preparation

Step 3. Softgel Encapsulation Process

Step 4. Softgel Drying

Step 5. Capsule polishing/washing

Step 6. Capsule packing



Technical Spec.

  • Yield: 20#OB 60,900 pcs/hour(die roller speed 4rpm)
  • Die Set Up Size: dia.150x250mm
  • Speed: Max. 6rpm
  • Plunger Qty: 20
  • Filling Volume: 0~2ml
  • Precision of Filling: +/-0.5%(oil)
  • Power Consumption: 18KW
  • Dimension: L2200xW1000xH2100mm

Big Commercial Production Soft Gelatin Capsule Filling Machine 2

Other points you may want to know about the JL250II big softgel capsules filling machine



1. How Long is the warranty period of the JL250II big Softgel capsules filling Machine ?

12 month after machine installed or after SAT, without human error operation.



2. JL250II big Softgel capsules filling Machine installation and commissioning?

We will arrange one skilled engineers to use’s factory for machien installation and commissioning. The service will be charged according to the situation.



3. JL250II big Softgel capsules filling Machine Training Service?

One skillful enginneer will be arranged from China to user fatory for machine traning. Make sure user could operate the machine in rigth way and also use it make perfect softgel capsules products.



4. Lead Time of the JL250II big Softgel capsules filling Machine ?

We will arrange the production of the equipment after receiving 30% of the customer's advance payment. It takes 60 days to produce from zero.



5 JL250II big Softgel capsules filling Machine certification?

The soft capsule machine has CE certificate at present.



Big Commercial Production Soft Gelatin Capsule Filling Machine 3Big Commercial Production Soft Gelatin Capsule Filling Machine 4Big Commercial Production Soft Gelatin Capsule Filling Machine 5
