Product Details
Place of Origin: China
Brand Name: JANGLI
Certification: CE
Model Number: JL-A
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD 100-1000 SET
Packaging Details: CARTON
Delivery Time: 5-8 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000SET PER YEAR
Temperature: |
RT-180 |
Weight: |
2kg |
Size: |
200x250x200mm |
Weight Range: |
0.1-50g |
Water Content Range: |
0.01%-100% |
Work Theory: |
Thermal Weight Lost |
Water Content Resolution Ratio: |
0.03% |
Displayer: |
7 Inch |
Temperature: |
RT-180 |
Weight: |
2kg |
Size: |
200x250x200mm |
Weight Range: |
0.1-50g |
Water Content Range: |
0.01%-100% |
Work Theory: |
Thermal Weight Lost |
Water Content Resolution Ratio: |
0.03% |
Displayer: |
7 Inch |
Water Concentration For Shell Of Softgel Capsules Fast Tester 5min
Backgroup
The soft capsules are dried on a drying tray or in a drying rotating cage. How to judge the drying effect of soft capsules?
It need to measure the moisture content of the soft capsule shell. The moisture content of the soft capsule shell is between 8% -13% after drying according to the relevant experience standard. It can be adjusted according to the characteristics of different products and injection materials.
How to measure the water content of soft capsule shell? At present, the common method is to calculate the water content by the method of reducing weight after combustion. The traditional method needs high temperature and long time combustion. This method takes more than 12 hours. This is not acceptable for people who need to know the results quickly. Therefore, the rapid moisture tester is a good choice.

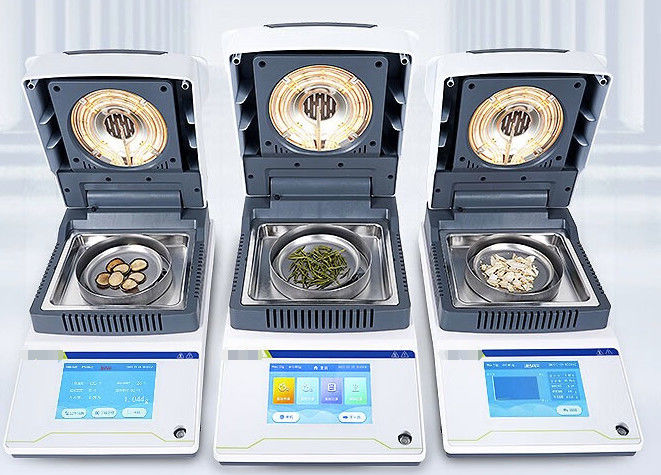

Quick moisture tester for soft capsules principle:
This instrument uses the halogen lamp rapid heating method to achieve high temperature in the bin for a short time, and maintain high temperature. At the same time, the soft capsule rapid moisture meter is equipped with the corresponding high-precision electronic weighing system. It can detect the weight of soft capsule in the silo in real time. During the whole experiment, it can be observed that the soft capsule shell continuously loses water and weight under the condition of high temperature. The final weight remains the same. A quick moisture tester for soft capsules will constantly calculate and display the relevant moisture content. Finally, the display screen will appear moisture content, weight, time, temperature and other parameters.
Features
1. Fast to get the results. In several min
2. Small size
3. Easy to operate
4. Display date in real time
5. Display in trending cureve
6. Data store
7. Date record
8. Date printer
9. English lanuage
10. Weigt calibration
11. Less sample
Techinicial Parameter:
1. | Weight range | 0.1g~50g |
2 | Water content range | 0.01%~100% |
3. | Solid content range | 100~0.01% |
4 | Work theory | Thermal weight loss |
5 | Time | Several mins |
6 | Temperature range | Room temperature-180 ℃ |
7 | Water content resolution ratio | 0.03% |
8 | Displayer | 7inch |
9 | Work environment | 5~50℃ RH<80% |
10 | Net weigth | 3 kg |
11 | Voltage | 220V 50HZ |
Application
1. All kind softgel capsules, include color softgel capsules
2. Gelatin mass water concentration fast tester
3. Filling material of softgel capsules
4. Medicine of softgel capsules
5. Gelatin powder that used for softgel capsules
6. Other Ingredients used for softgel capsules
FAQ
1. How Long is the warranty period of the water concentration fast tester device for shell of softgel capsules?
The warranty period is 12 months from the date of receipt of the equipment. Does not include damage caused by human error.
2. water concentration fast tester device for shell of softgel capsules installation and commissioning?
We will send you the manual and video to show you how to use and installa the device.
3. water concentration fast tester device for shell of softgel capsules Training Service?
We will send you the manual and video to show you how to use and installa the device.
4. Lead Time of the 4 water concentration fast tester device for shell of softgel capsules?
We will arrange the production of the equipment after full payment. It takes 3 days to purchase and more several days if it need some specific requirement.
5 water concentration fast tester device for shell of softgel capsules certification?
The soft capsule sieving machine has CE certificate at present.
6 water concentration fast tester device for shell of softgel capsules after-sales service?
We are specialized in making soft capsule production line-related equipment. We will provide 24-hour consultation service. We will respond to customer questions within 12 hours. Give initial solutions within 24 hours. You can communicate through voice, video, email, instant message and other channels. If an engineer is required to provide on-site equipment The Adjuster, maintenance and other services, we can also arrange for skilled engineers to conduct on-site related services. The service will be charged according to the situation
