600L Large Volume Softgel Medicine Mixing Tank with Platform

Name: 600L Large Volume Softgel Medicine Mixing Tank with Platform
Brand: Wuxi Jangli Machinery Co., Ltd.
SKU: JLPY
Price: 101,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JANGLI

Certification: CE

Model Number: JLPY

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD 2000-200000 one set

Packaging Details: wooden box

Delivery Time: 30-60days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 100sets

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Material:	SS304 SS316L	Size:	600L
Operation Way:	Automatic	Power:	15KW
Heating:	Steam Heating & Water Heating	Vacuum:	Yes
Working Temperature:	0-100 Degree	Pressure:	-0.1Mpa-0.1Mpa

Material:	SS304 SS316L
Size:	600L
Operation Way:	Automatic
Power:	15KW
Heating:	Steam Heating & Water Heating
Vacuum:	Yes
Working Temperature:	0-100 Degree
Pressure:	-0.1Mpa-0.1Mpa

Description

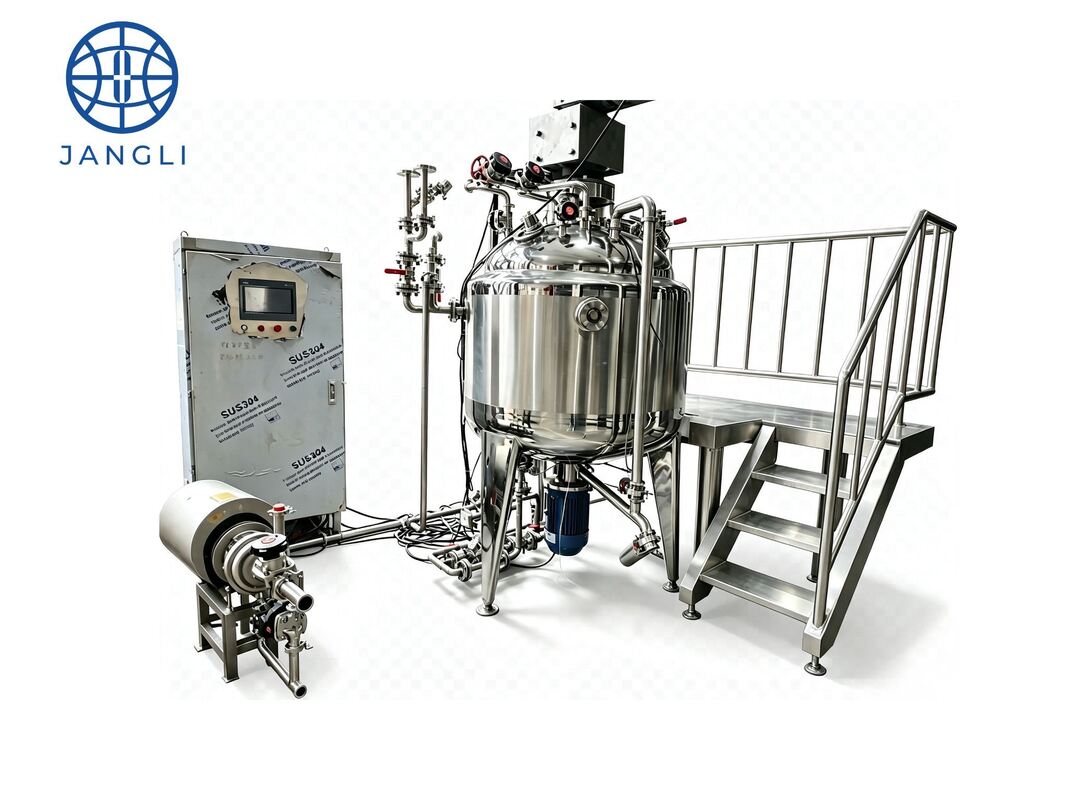

600L Large Volume Softgel Medicine Mixing Tank with Platform

600L Large Volume Softgel Medicine Mixing Tank with Platform

Discriptions of Softgel Medicine Mixing Tank:

The medicine mixing tanks are designed and manufactured based on the medicine preparation process or client’s specific requirement. The specific three-layers structure, inner layer, jacket and insulation layer, is applied to ensure a even heating and working efficient. Not only it can been used in pharmaceuticals industry, but also in cosmetics industry, food industry, liquid industry can been found it’s application.

Features of Softgel Medicine Mixing Tank:

High Speed Homogenizing: One kind of homogenizing head is available for making the medicine more even, which will be more helpful for suspension softgel encapsulation.
GMP and FDA requirements: It is accordance with GMP and FDA requirement of health standards and food containers SS standards.
Better Performance: Dissolving medicine fast, avoid precipitation, smooth operation.
Better Sealingness: The seal piece and seal ring can be used for more than 3000 continuous hours, during mixing to bear positive/negative pressure in the tank.
Best Design: All the design for this equipment is following GMP and many year’s experience.
High efficient mixing: installed with square blade make the medicine solution even.
Stable: with high speed homogenizer and mixer, the equipment still work stably.

Technical Parameters of Softgel Medicine Mixing Tank:

Item		Parameter
	Full Volume	600L
	Working Pressure (tank)	-0.09-0.09MPa
	Design Pressure (tank)	-0.1-0.1MPa
	Working Temp. (tank)	0-100℃
	Design Temp. (tank)	0-150℃
	Working Pressure (Jacket)	0.3MPa
	Design Pressure (Jacket)	0.35MPa
	Working Temp. (Jacket)	0-100℃
	Design Temp. (Jacket)	0-150℃
	Outer Agitator Power	5.5KW
	Outer Agitator Speed	25RPM
	Inner Agitator Power	2.2KW
	Inner agitator speed	37RPM
	Homogenizer Power	7.5KW
	Homogenizer Speed	1150-3400RPM
	Power Supply	220V/60Hz/3P
	Contact Material	316L

Images of of Softgel Medicine Mixing Tank:

600L Large Volume Softgel Medicine Mixing Tank with Platform

Packing and Shipping of of Softgel Medicine Mixing Tank:

600L Large Volume Softgel Medicine Mixing Tank with Platform
