Product Details
Place of Origin: China
Brand Name: JANGLI
Certification: CE FDA ISO
Model Number: JL-300III
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 50,000 - 100,000
Packaging Details: vacuum inner packing, plywood outer packing
Delivery Time: 60 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Die Roller Size: |
200x300mm |
Plungers: |
24/28/30 Pcs |
Output: |
96000 20OB Capsules Per Hour |
Running Speed: |
0-5 Rpm |
Power: |
18kw |
Size: |
2200x900x2200mm |
Weight: |
1800kg |
Voltage: |
220V 380V 415V 480V ....3 Phase |
Filling Volume: |
0-3500ml |
Packing: |
Vacuum Wooden |
Die Roller Size: |
200x300mm |
Plungers: |
24/28/30 Pcs |
Output: |
96000 20OB Capsules Per Hour |
Running Speed: |
0-5 Rpm |
Power: |
18kw |
Size: |
2200x900x2200mm |
Weight: |
1800kg |
Voltage: |
220V 380V 415V 480V ....3 Phase |
Filling Volume: |
0-3500ml |
Packing: |
Vacuum Wooden |

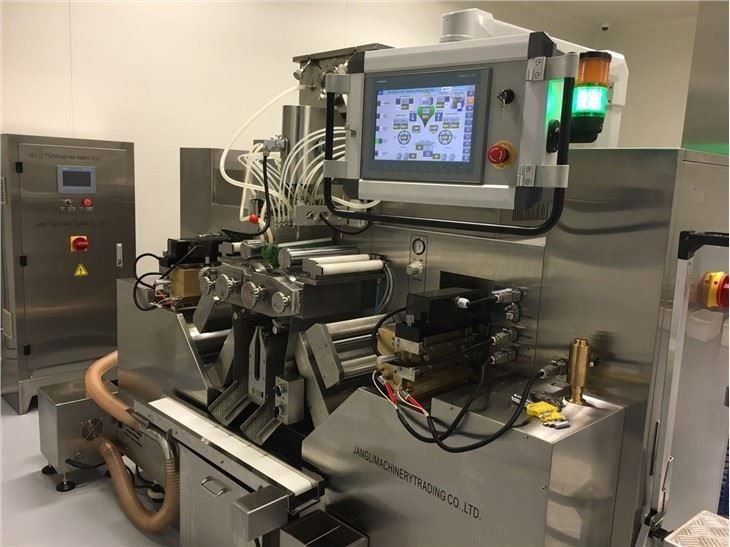

JL-300III The Biggest 12 Inch Softgel Encapsulation Machine For Big Commercial Production
Expanding into Large Scale Softgel Production? Use the JL-300III Softgel Encapsulation Machine for Best Results!
Product Page Introduction
Are you venturing into the business of softgel capsule mass production? Look no further than our JL-300III Softgel Encapsulation Machine. Believe it or not, this machine demonstrates ultra high-tech capsule encapsulating technology and has the world's largest production capacity! By installing our softgel encapsulation machine in your manufacturing plant, you will benefit from Jangli’s Machinery Co. Ltd's decades of knowledge and experience!
What makes the JL-300III Softgel Encapsulator special? Firstly, it is driven by a high-speed Servo Motor Driving System. Secondly, it has a touch screen panel through which you can configure the production process. Best of all, it has a simple, and attractive appearance! Here is more about this cutting-edge softgel encapsulation machine.
Explore the JL-300III Softgel Encapsulation Machine’s Features
A Servo Motor Driving System
The softgel encapsulation machine uses an advanced Servo Motor Driving System. The motor achieves a high rotation speed of 8 RPM (Rotations per Minute) for faster encapsulation and quicker mass production. Even better, this Servo Motor emits much lower vibration. As a result, the machine is pleasant to use.
Unlike traditional machines that used gear driven die roller alignment, our high-tech soft capsule making machine implements automatic die roller alignment! How does it achieve this? Your machine operator can simply make the alignment setting on the onboard, full color SIEMENS PLC touch screen display, and the machine will automatically align the die roller for you!
Electronic Medicine Pump
Did you know that there is no need to manually adjust the gears when changing the die roller on our JL-300III Softgel Encapsulation Machine? Interestingly, our machine uses an electronic gear to automatically synchronize the medicine pump and its die roller! As a result, operating this machine becomes much easier!
Automatically Adjusting Softgel Injection Timing
We take pride in facilitating a user-friendly experience in our JL-300III Softgel Encapsulation Machine. Therefore, you can use the touch screen panel to adjust the softgel injection timing for quicker configuration. In addition to that, you can also interact with the touch screen panel to adjust the softgel filling volume. This efficient mechanism helps save time and labor!
Digital Recipe Storage
Each softgel capsule batch is made using a unique recipe. At Jangli, we make it much easier for you to store, these recipes. A fantastic feature of the JL-300III Softgel Encapsulator, is that you can digitally store recipes in its on-board memory. As a result, you can retrieve any recipe on demand!
High Precision Main Axis
Our class-leading softgel filling machine has a high precision main axis so you can always expect high quality capsule production. The main axis features international first-class design, and components because it is manufactured using an imported Swiss Boring machine.
Micro-Lubrication System
At Jangli, we strive to make the soft capsule production process as convenient as possible for you! Therefore, our JL-300III Softgel Encapsulation Machine is fitted with a micro-lubrication system which ensures that there is minimal oil left on the softgel capsules. As such, there's no need for additional cleaning before the capsules are packed!
Adopts AGT System
You can use this softgel machine's AGT System to determine the thickness of your softgel capsules. Simply specify the desired thickness on the touch screen. After that, the machine will automatically apply your settings resulting in perfectly-designed softgel capsules.
Water-Cooled Casting Drum
Utilizing the JL-300III Softgel Encapsulation Machine guarantees perfectly sealed softgel capsules. That's because this machine implements a water-cooled casting drum. This method prevents moisture condensation in the capsule. As a result, they are perfectly sealed.
Robust Electrical System
Electricity powers our soft capsule encapsulate machine by flowing through SIEMENS and Schneider components. Moreover, all the electrical connectors are manufactured by Weidmuller. As a result, the encapsulation machine proves highly reliable thanks to this method of construction.
Designed perfectly for Large Scale softgel capsule production, our JL-300III Softgel Encapsulation Machine is the perfect fit for your facility! Packed with beneficial features such as a high-speed Servo Motor Driving System, a full color SIEMENS PLC touch screen panel, automatic adjustment, onboard recipe storage, and a robust electrical system, it is an ideal softgel encapsulation machine for you! Visit our Jangli website and order yours today!
JL-300III Softgel Encapsulation Machine Data Sheet
|
Die Roll Size |
Φ200x300mm |
|
Die Roll Rotating Speed |
0~7RPM |
|
Plunger Quantity |
20 |
|
Production Capacity |
8#OV 287,640pcs/our(6RPM) |
|
Total Power |
15kw |
|
Total Weight |
1500KG |
|
Dimensions |
2400(l)x1250(w)x1200(h)mm |
