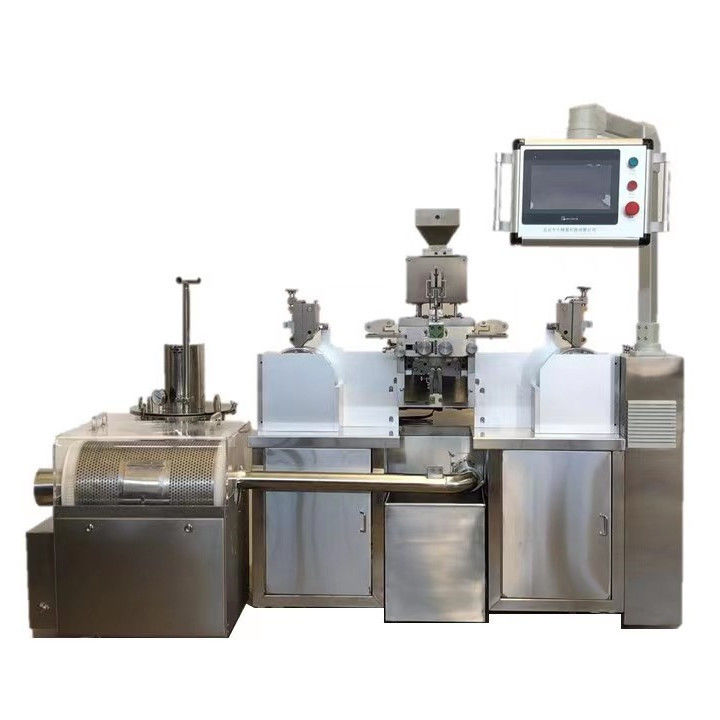

Smallest Table Top Lab Top Softgel Encapsulation Machine

Product Details

Place of Origin: China

Brand Name: JANGLI

Certification: CE FDA ISO

Model Number: JL-50II

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 10,000 - 100,000

Packaging Details: vacuum inner packing, plywood outer packing

Delivery Time: 30 days

Payment Terms: T/T, L/C

Supply Ability: 100 sets per year

Get Best Price
Contact Now
Specifications
High Light:

Lab Top Softgel Encapsulation Machine

,

Table Top Softgel Encapsulation Machine

,

1 phase softgel encapsulation

Die Roller Size:
64x65mm
Plungers:
4 Pcs
Filling Volume:
0-3000ml
Output:
8000 20OB Capsules Per Hour
Size:
1200x600x800mm
Weight:
120kg
Power:
220V 1 Phase
Packing:
Wooden Box
Die Roller Size:
64x65mm
Plungers:
4 Pcs
Filling Volume:
0-3000ml
Output:
8000 20OB Capsules Per Hour
Size:
1200x600x800mm
Weight:
120kg
Power:
220V 1 Phase
Packing:
Wooden Box
Description
Smallest Table Top Lab Top Softgel Encapsulation Machine

Smallest Table Top Lab Top Softgel Encapsulation Machine

JL-50_Softgel_Encapsulation_Machine_Image2



Learn and Innovate New Softgel Technologies with the JL-50II Softgel Encapsulation Machine!

Product Page Introduction

Are you a startup company developing a new softgel capsule product? Do you need an encapsulation machine that is affordable, easy to use, and highly effective? Choose our JL-50 Softgel Encapsulation Machine. This softgel encapsulation machine was designed for Research

and Development (R&D), and guarantees excellent product quality!

The JL-50 Softgel Encapsulation Machine is user-friendly, and compact enough to be placed on a table during operation! Thanks to these unique characteristics, this machine can be used to study the procedures involved in softgel capsule production. As such, it is a versatile unit that can also be utilized by students in technical training institutes, colleges, and universities! Our highly experienced engineers developed it to be ideal for manufacturing new products including nutritional supplements, health-care products, chemicals, and traditional Chinese medicine softgels among many others! Here is more on this beginner-level softgel encapsulation machine.

The JL-50II Softgel Encapsulation Machine’s Features Explained

Compact Measurements

At first glance, a distinct feature of the JL-50 Softgel Encapsulation Machine is how compact it is! It is designed to be small, and functional at the same time. As a matter of fact, you can assemble, and operate it on a standard sized table!

Air Conditioner

Air_Conditioner_Image

At Jangli, your comfort as our customer is of top priority. That is why this softgel filling machine is complemented by an air conditioner upon delivery. This additional component eliminates exhaust fumes, and purifies air in the room at the same time!

Gelatin Spreader Box

Gelatin_Spreader_Box_Image

Despite this softgel encapsulation machine being compact, it has some substantial sized components. One of these is a surprisingly spacious gelatin spreader box. With this feature, the machine can maximize output despite its small surface area.

General Purpose Die Roller

General_Purpose_Die_Roller_Image

As you learn about softgel capsule production, it is important to explore all different types of softgels. These products are used in a wide variety of fields including pharmaceutical, veterinary, confectionery, and even paintball purposes. As such, we designed the JL-50 Softgel Encapsulation Machine to be versatile. Upon closer inspection, you will notice that this softgel encapsulation machine has a 64mm x 65mm die roller. This components dimensions make it capable of producing a range of different types of softgel capsules. In addition to that, this die roller is made of stainless steel. Therefore, it will last for a long time!

Touch Screen Panel

Touch_Screen_Panel_Image

At Jangli, we understand that it is very important for training equipment to be interactive. Therefore, we fitted our JL-50 Softgel Encapsulation Machine with a full color PLC WEINVIEW touch screen display. Your students, or machine operator can configure every part of this softgel capsule making machine through this touch screen panel. Notably, the touch screen panel is complemented by highly visible Start, Stop, and Set buttons that enhance usability!

If you want to produce the highest quality softgel capsules, it is essential to understand the fundamentals of production. At Jangli, we built the JL-50 Softgel Encapsulation Machine to be an ideal machine for learning about the softgel production industry! We equipped it with student-friendly features such as a full color PLC WEINVIEW touch screen control panel, and compact dimensions. It is also perfect for startups because its onboard die roller can produce a variety of softgel capsule types. Visit our website today and order your JL-50 Softgel Encapsulation Machine to equip your startup, or training institute with the best softgel capsule equipment!

The JL-50II Softgel Encapsulation Machine Data Sheet





Die Roll Size Φ64×65mm
Die Roll Rotating Speed 0-5rpm (frequency control)
Plunger Quantity 4
Production Capacity 5,000 pcs/hour
Total Power 1Kw
Dimensions 1200(l)x600(w)x800(h)mm
