Servo Motor Softgel Manufacturing Equipment SS304 SS316L

Product Details

Place of Origin: China

Brand Name: JANGLI

Certification: CE FDA ISO

Model Number: JL-150III

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 50,000 - 100,000

Packaging Details: vacuum inner packing, plywood outer packing

Delivery Time: 60 days

Payment Terms: T/T, L/C

Supply Ability: 100 sets per year

Get Best Price
Contact Now
Specifications
High Light:

Servo Motor softgel manufacturing equipment

,

SS304 softgel manufacturing equipment

,

SS316L soft gel capsule machine

Die Roller Size:
120x150mm
Work Capacity:
30000 22OBcapsules Per Hour
Power:
12KW
Driving System:
Servo Motor
Size:
2200x800x2100mm
Packing:
Vacuum Wooden Box
Material:
SS304 And SS316L
Control Way:
HMI Siemens
Die Roller Size:
120x150mm
Work Capacity:
30000 22OBcapsules Per Hour
Power:
12KW
Driving System:
Servo Motor
Size:
2200x800x2100mm
Packing:
Vacuum Wooden Box
Material:
SS304 And SS316L
Control Way:
HMI Siemens
Description

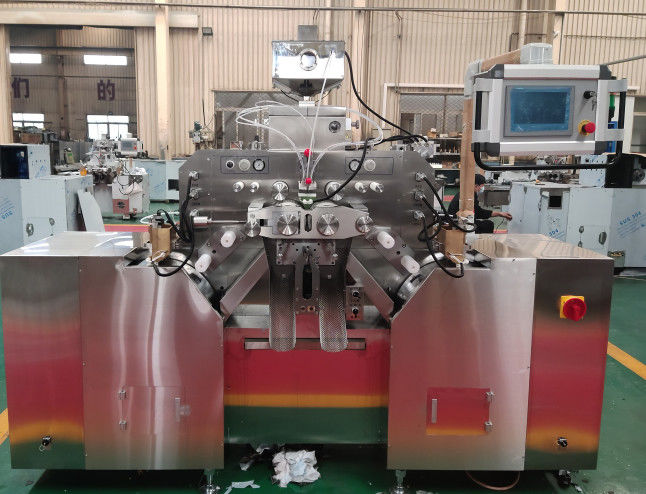

Servo Motor Softgel Manufacturing Equipment SS304 SS316L



JL-150III Servo Softgel Encapsulation MachineServo Motor Softgel Manufacturing Equipment SS304 SS316L 0

Explore the Power Packed JL-150III Softgel Encapsulation Machine Today!

Product Page Introduction

There are times when you need a machine that is just as good for innovation, as it is for commercial production. Our JL-15II Softgel Encapsulation Machine fits this description perfectly! It can be used for softgel capsule Research & Development (R&D), as well as Medium Scale output. At first glance, this machine presents compact dimensions, and covers a small floor space. In addition to that, it exhibits low power consumption. Its innovative characteristics make this machine suitable for use in an instructional setting, or a growing factory setting. These features make the JL-15II Softgel Encapsulation Machine perfect for a growing company. Satisfy your curiosity about this resourceful softgel encapsulation machine below.

What’s Under the Hood of Our JL-15II Softgel Encapsulation Machine?

High Precision Medicine Pump

High_Precision_Medicine_Pump_Image

At Jangli, we performed rigorous R&D to make sure that the JL-15II Softgel Encapsulation Machine has a high precision medicine pump which fills up the softgel capsules with an error of less than 1.5ml! Its superior level of accuracy results in high quality soft gelatin capsules. There are 8 plungers in this softgel filling machine, with a row of 4 plungers on each side. Together, they can fill up 31,500 softgel capsules per hour at a speed of 3 RPM (Rotations Per Minute)!

Servo Motor Softgel Manufacturing Equipment SS304 SS316L 2

Even better, this pump is made of a stainless steel and HCP alloy. This combination results in high levels of hardness, and significant resistance to abrasion. As such, your JL-15II Softgel Encapsulation Machine will last for a long time!

Innovative Casting Drum Cooling Method

After decades of experience in manufacturing softgel making machines, we came up with a unique method of cooling the casting drum. This machine's casting drum is cooled using an independent industrial chiller! This chiller cools the casting drum faster and performs accurate temperature regulation!

Independent Die Roll Mounting

Servo Motor Softgel Manufacturing Equipment SS304 SS316L 3

A new feature contained within our JL-15II Softgel Encapsulation Machine is that each die roller can be installed independently, without affecting the others! This innovative method of operation is more accurate than traditional cross beam installation.

Micro Lubricating Pump

Micro_Lubricating_Pump_Image

At Jangli, we are always exploring new ways to increase the efficiency of our softgel encapsulation machines. Therefore, we created a high-tech innovation known as the soft capsule encapsulate machine's micro lubricating pump! This dosing pump can be precisely controlled to lubricate the gelatin ribbon on a micro scale. As a result, your softgel capsules do not need to be cleaned or dried after production!

SIEMENS PLC Touch Screen Display

SIEMENS_PLC_Touch_Screen_Display_Image

Did you know that every setting in this softgel capsule making machine can be controlled using a SIEMENS PLC touch screen panel? We equipped the JL-15II Softgel Encapsulation Machine with this full color, touch sensitive screen to make it easier for your machine operator to interact with the machine. It is fast, responsive, and user-friendly! Best of all, it reveals your current settings, the machines state, and automatically diagnoses any errors during operation! These characteristics help in troubleshooting and maintenance.



Our JL-15II Softgel Encapsulation Machine truly is a jack of all trades! It is perfect for learning, Research and Development (R&D) as well as Medium Scale output! It is compact in size, so it will occupy a small floor space in your manufacturing plant. Moreover, our machine is packed full of cutting-edge technologies such as a SIEMENS PLC touch screen panel, high precision medicine pump, industrial-grade cooling, and a micro lubricating pump, just to mention a few! Invest in our JL-15II Softgel Encapsulation Machine today and experience maximum production power packed in a small package!



The JL-15II Softgel Encapsulation Machine Data Sheet

Die Roll Size Φ150×100mm (6'')
Die Roll Rotating Speed 0-3.5rpm (frequency control)
Plunger Quantity 8
Production Capacity 8#OV 31,500pcs/hour(3rpm)
Total Power 2.5kw
Total Weight 650kg
Dimension 1800(l)X900(w)X1750(h)mm
