Pilot Softgel Production Softgel Encapsulation Machine with 10,000 capsules/hour Output
During softgel product development, machine stability, process controllability, and similarity to industrial production are critical to successful scale-up. The JL-75II Laboratory Softgel Encapsulation Machine is specifically designed for laboratory research, formulation development, and pilot trials, enabling users to establish reliable, repeatable softgel encapsulation processes at the R&D stage—laying a solid foundation for subsequent industrial production.

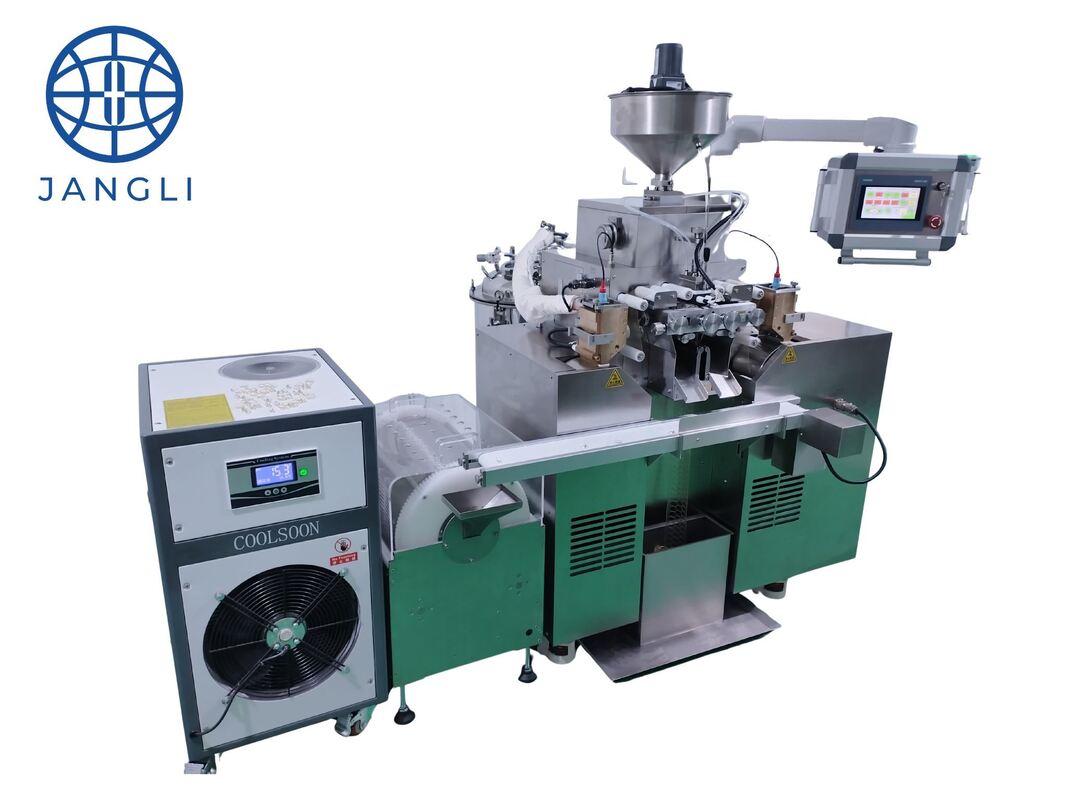

Images of JL-75II Laboratory Softgel Machine
Electrical Control System
Equipped with an industrial-grade electrical control system, the machine boasts a clear layout and standardized wiring for easy maintenance and troubleshooting. Adopting a PLC-based control architecture, it ensures stable operation and superior process repeatability under laboratory conditions—critical for obtaining consistent R&D data.
Gelatin Melting System – Key Structural Features
The stainless-steel gelatin melting system is dedicated to heating, mixing, and heat-preserving gelatin solution. Its optimized structural design effectively maintains stable temperature and viscosity of the gelatin solution, providing uniform, high-quality gelatin ribbons for smooth encapsulation—directly affecting the integrity and consistency of softgel products.
Small-Capacity Gelatin Melting Tank
Tailored for laboratory and pilot-scale applications, the small-capacity gelatin melting tank not only meets strict process requirements but also minimizes raw material consumption. This design is particularly ideal for frequent R&D operations, where multiple formulations and tests are conducted with limited sample quantities.
Laboratory Mold System
The laboratory mold system supports a variety of capsule sizes and shapes. Molds are easy to install, disassemble, and replace, allowing R&D teams to efficiently test different formulations, dosages, and capsule designs—greatly improving R&D efficiency and flexibility.
Rolling Die Encapsulation and Injection Area
The JL-75II adopts a rolling die softgel encapsulation mechanism, consistent with industrial softgel production equipment. Two gelatin ribbons run synchronously, while the filling material is accurately injected into the die cavities. This design ensures that the encapsulation process closely simulates industrial production, providing reliable, scalable reference data for seamless scale-up.
Laboratory Tumble Dryer
After encapsulation, softgel capsules are transferred to the matching laboratory tumble dryer for initial drying and shape setting. The controlled, gentle drying process is specifically designed for small-batch samples, effectively maintaining capsule integrity and preventing deformation—ensuring the quality of test samples.
PLC Touch Screen Operation Interface
The touch screen HMI (Human-Machine Interface) provides clear visualization of all key operating parameters, enabling intuitive operation. Process settings (such as temperature, speed, and injection volume) can be easily adjusted to meet different experimental requirements, significantly improving R&D efficiency and reducing operational complexity.
Key Technical Data
- Model:
- JL-75II
- Machine Type:
- Laboratory Softgel Encapsulation Machine
- Application:
- R&D and Pilot Trials
- Output Capacity:
- Approx. 6,000 capsules/hour*
- Power Supply:
- 220V / 50Hz, Single Phase
- Compressed Air:
- ≥ 0.4 MPa
Main Components
- Rolling die softgel encapsulation unit
- Laboratory gelatin melting tank
- PLC control system with touch screen
- Laboratory tumble dryer
- Chiller for gelatin ribbon cooling
*Based on typical laboratory capsule size.
Packing and Shipping of Lab Use Softgel Machine
FAQ for Laboratory Softgel Machine
- 1. What is the JL-75II laboratory softgel machine mainly used for?
- The JL-75II is mainly used for softgel formulation development, process optimization, and pilot-scale testing.
It helps R&D teams establish stable encapsulation parameters before scale-up to production. - 2. Is the JL-75II suitable for industrial mass production?
- No. The JL-75II is designed for laboratory and pilot-scale applications only.
It is not intended for continuous high-volume manufacturing. - 3. Can the JL-75II simulate industrial softgel production processes?
- Yes. The JL-75II adopts rolling die softgel encapsulation technology, which follows the same forming logic as industrial softgel production processes.
This makes it an effective bridge between laboratory research and production. - 4. What types of formulations can be processed?
- The JL-75II is suitable for liquid and semi-solid formulations, such as oils, suspensions, emulsions, and herbal extracts.
Actual suitability depends on formulation characteristics and process conditions. - 5. Can capsule size and shape be customized?
- Yes. Different capsule sizes and shapes can be produced by changing the laboratory mold set.
Molds can be customized according to specific R&D requirements.
