High Precision Softgel Encapsulation Machine Gelatin & Vegetarian Soft Capsule Production Equipment

Name: High Precision Softgel Encapsulation Machine Gelatin & Vegetarian Soft Capsule Production Equipment
Brand: Wuxi Jangli Machinery Co., Ltd.
SKU: JL-150III
Price: 115.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JANGLI

Certification: CE FDA ISO

Model Number: JL-150III

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 100,000 - 130,000

Packaging Details: vacuum inner packing, plywood outer packing

Delivery Time: 30 days-60 days

Payment Terms: T/T,L/C

Supply Ability: 100 sets per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Material:	SS304 And SS316L	Plungers:	8 Pcs
Single Plunger Filling Volume:	0-2ml	Filling Volume Accuracy:	+/- 0.5%
Running Speed:	0-6rpm	Die Roller Size:	150x250mm
Dimension:	2400x780x1900mm	Weight:	1200kg

Material:	SS304 And SS316L
Plungers:	8 Pcs
Single Plunger Filling Volume:	0-2ml
Filling Volume Accuracy:	+/- 0.5%
Running Speed:	0-6rpm
Die Roller Size:	150x250mm
Dimension:	2400x780x1900mm
Weight:	1200kg

Description

High Precision Softgel Encapsulation Machine Gelatin & Vegetarian Soft Capsule Production Equipment

High Precision Softgel Encapsulation Machine Gelatin & Vegetarian Soft Capsule Production Equipment

Description of Softgel Encapsulation Machine

The JL-150III servo-driven softgel machine delivers the performance of larger models within a medium-scale footprint. Key advantages include:

High-Efficiency Drive: Advanced servo motor technology allows a running speed up to 6 RPM for higher output and low-noise operation.

Centralized Control: Easily adjust timing, alignment, temperature and speed parameters via an intuitive touchscreen interface.

Recipe Memory: Save and retrieve operational parameters for different products to simplify product changeovers and guarantee batch consistency.

Compact & Robust Design: Drawing on Jangli’s rich manufacturing experience, this sturdy, space-saving machine is ideal for medium-volume production.

Main Features:

Servo-motor driving system
Automatic die roller alignment
Automatic injecting timing adjusting
Automatic filling volume adjusting
Automatic gelatin ribbon thickness adjusting
Operation speed up to 6rpm and normally 5rpm
Manufactured and designed meet GMP and FDA compliance standards.
Medicine filling pump plunger count: 8
Operation speed up to 6rpm and normally 5rpm
Pharmaceutical & Nutraceutical & Cosmetic applicable
Manufactured and designed meet GMP and FDA compliance standards.
Big diameter die roller size: ø150x120mm
Suitable for both Animal gelatin& plant based vegetarian softgel

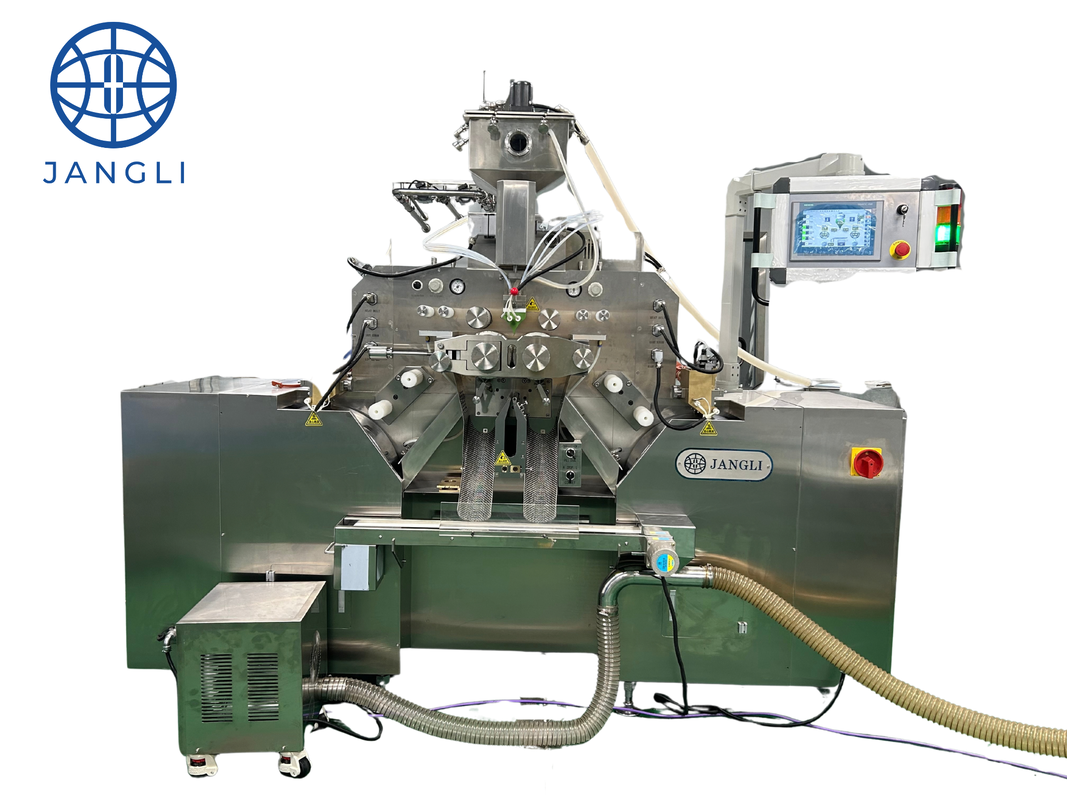

Pictures of the JL-150III Softgel Encapsulation Machine

High Precision Softgel Encapsulation Machine Gelatin & Vegetarian Soft Capsule Production Equipment

Specificatsions of the JL-150III Softgel Encapsulation Machine

Equipment Specification Data Sheet

Production Capacity	56,700 caps/hour (8 Oval 500mg) 27,540 caps/hour (20#Oblong, 1000mg)
Die Roller Size	Φ150x250mm (10”x6”)
Die Roller Speed	0~6RPM (frequency control)
Plunger Quantity	8 pcs (4 on each side)
Control Method	PLC and HMI (Touch Screen)
Electric Power	220V/380V/400V
Power Consumption	10KW
Dimensions	2400x780x1900(h)mm
Weight	1200kgs

Packing and Shipping of the JL-150III Softgel Encapsulation Machine

High Precision Softgel Encapsulation Machine Gelatin & Vegetarian Soft Capsule Production Equipment

FAQ

1. What is the JL-75II laboratory softgel machine mainly used for?: The JL-75II is mainly used for softgel formulation development, process optimization, and pilot-scale testing.
It helps R&D teams establish stable encapsulation parameters before scale-up to production.
2. Is the JL-75II suitable for industrial mass production?: No. The JL-75II is designed for laboratory and pilot-scale applications only.
It is not intended for continuous high-volume manufacturing.
3. Can the JL-75II simulate industrial softgel production processes?: Yes. The JL-75II adopts rolling die softgel encapsulation technology, which follows the same forming logic as industrial softgel production processes.
This makes it an effective bridge between laboratory research and production.
4. What types of formulations can be processed?: The JL-75II is suitable for liquid and semi-solid formulations, such as oils, suspensions, emulsions, and herbal extracts.
Actual suitability depends on formulation characteristics and process conditions.
5. Can capsule size and shape be customized?: Yes. Different capsule sizes and shapes can be produced by changing the laboratory mold set.
Molds can be customized according to specific R&D requirements.
