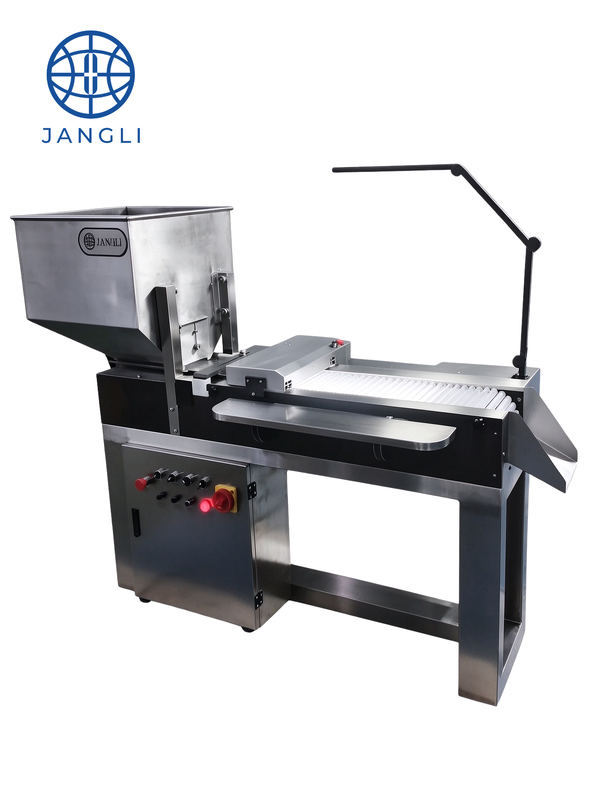

Description of the capsule inspection machine:

JLDJ-220B model drug inspecting machine is a new product researched by our company on the basis of integration of domestic and foreign advanced technologies in order to meet the needs of pharmaceutical sector. It can test outlook quality for hard capsules, soft capsules and tablets.

Working Principle of the capsule inspection machine:

The product flows from the feed hopper into a vibratory chute where a perforated screen eliminates coarse dust and chips which are then collected in a collecting container.
The product enters the inspection stage in a single layer. The capsules and tablets are placed on rotating rollers and are continuously turned in front of the operator which ensures a reliable all-sided inspection. An adjustable mirror enables the operator to examine the far side of the product. Optionally the rotation speed of the inspection rollers is adjustable with a separate drive unit, independent of the inspection speed.
Once the operator find defective tablets and capsules, the operator can use a flexible hand-held vacuum nozzle to remove it. If there are lots of defective products appears all together in a short time, the operator can step on foot-pedal switch to stop conveying, and then use hand-held vacuum nozzle to remove them one by one. Once the operator step on foot-pedal switch, the conveying is stopped, while the rollers are still rotating.

Technical Parameters of the capsule inspection machine:

Photos of the capsule inspection machine:

Packing and Shipping of the capsule inspection machine:

1. What is the maximum output capacity?
The machine can output up to 120,000 capsules per hour or approximately 50kg of tablets, depending on the product and its size.

2. What types of products can this machine inspect?
It inspects hard capsules, soft capsules, plain or coated tablets, and other round or cylindrical objects.

3. Is the machine customized?
Yes, the machine is customized to meet the specific needs of the pharmaceutical sector.

4. What is the warranty period?
The machine comes with a 1-year warranty.

5. What is the lead time for delivery?
During peak season, the lead time is one month. During off-season, it is within 15 workdays.

6. Does the machine require an external vacuum pump?
No, it features an integrated vacuum system that does not require connecting an external vacuum pump.

7. What are the available power options?
It supports 220V/50Hz single phase or 110V/60Hz single phase electrical connections.

8. What after-sales services are provided?
Our engineers are available for overseas service, online support, and video technical support.
