Product Details
Place of Origin: China
Brand Name: JANGLI
Certification: CE FDA ISO
Model Number: JL-250III
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 10,000 - 100,000
Packaging Details: vacuum inner packing, plywood outer packing
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Die Roller Size: |
64x65;80x100;150x120;150x250mm200x300 |
Plungers: |
4-3 Pcs |
Material: |
SS304 And SS316L |
Running Speed: |
0-8rpm |
Filling Volume: |
0-3500ml |
Packing: |
Vacuum Wooden |
Weight: |
1500kg |
Size: |
2200x800x2200mm |
Control Way: |
HMI Siemens |
Die Roller Size: |
64x65;80x100;150x120;150x250mm200x300 |
Plungers: |
4-3 Pcs |
Material: |
SS304 And SS316L |
Running Speed: |
0-8rpm |
Filling Volume: |
0-3500ml |
Packing: |
Vacuum Wooden |
Weight: |
1500kg |
Size: |
2200x800x2200mm |
Control Way: |
HMI Siemens |
Rotary Die Encapsulation Machine
Advantange of softgel gelatin capsules
Soft capsules can cover up bad smell, reduce irritation, high stability, anti-oxidation, easy to take, high bioavailability and so on. The advantages of soft capsules are:
1. After disintegration, it can be absorbed directly in the intestine without dissolving process and quickly
2. The content of soft capsules was accurate
3. High bioavailability and reduced dosages for patients
4. The functional substance has good stability and is not easy to oxidize and absorb moisture
5. Good sealing, covering the bad smell of drugs
6. Take it thoroughly. It will look good and be popular
OVER VIEW

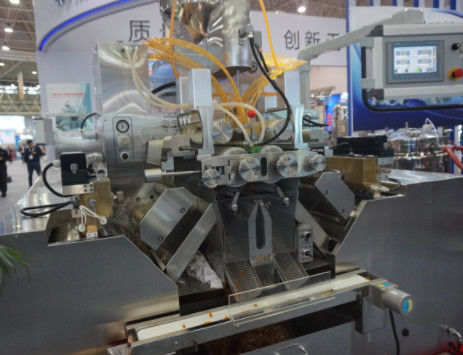

Softgel encapsulation machine another name is rotary die encapsulation machine. It make different shape softgel capsules by die roll.
The shape and size of softgel capsules based on the die roll, it can make any shape you want your product be.
ROUND, OBLONG, OVAL, TUBE, DROP, CALABASH, GOLDFISH,FLAGON, FISH, AUBERGINE, TRIANGLE, ANIMAL, FRUIT.........any shape you want
MAIN PARAMETER
| Technical Specification | JLH-250III | JL-250II | JL-15II | JL-100II |
| Output | 88200/h(20#OB; 6rpm) | 58800/h(20#OB; 4rpm) | 17280/h(20#OB; 3rpm) | 8640/h(20#OB; 4rpm) |
| Die Roll Size | Φ150×250mm | Φ150×250mm | Φ150×100mm | Φ80×100mm |
| Die Roll Speed | 0-7rpm | 0-5rpm | 0-4rpm | 0~5rpm |
| Feeding Range | 0-2mL | 0-2mL | 0-2mL | 0-2mL |
| Feeding Variance | ±1.5% | ±1.5% | ±1.5% | ±1.5% |
| Overall Size | 2200*1000*1900 | 2040*960*1900 | 1800*900*1750 | 1440×660×1350 |
| Overall Weight | 1800Kg | 1500Kg | 650Kg | 400 Kg |
| Total Power | 12kw | 10kw | 6kw | 5kw |
| Electrical Power | 380V/220V/480V/110V/240V/208V/400V/415V 50HZ/60HZ 3Phase | |||
FEATURE
High Speed with High Output: The max speed is at 5 RPM; Working Speed is at 4 rpm.
Siemens Programmed Logic Control System. It could record any date you have and any formation you used. Easy to audit and operate
Artificial Intelligence Control. Add one computer and you can control your encapsulation machine at your office. It also can send some alarm detail to your mobile phone, let you know what happened.
Automatic Gelatin Ribbon Thickness Control System. No need workers to control thickness of gelatin ribbon manually, which will lose lots of time and money.
Automatic Medicine Pumping System. Liquid sensor will control the machine to pump medicine solution from service tank to machine medicine box
Other service for Free
Other very important poitns for the Softgel gelatin capsules machine that you should to know. Here it is.
1. How Long is the warranty period of the Softgel gelatin capsules machine?
The warranty period is 12 months from the date of receipt of the equipment. Does not include damage caused by human error.
2. Softgel gelatin capsules machine installation and commissioning?
Before the equipment leaves the factory, we will pass the skilled engineer to carry on the debugging to each parameter. After the equipment is unpacked, it can be used directly with electricity. If you need our engineers on-site installation and commissioning of equipment. We can also arrange for skilled engineers to visit the relevant services. The service will be charged according to the situation.
3. Softgel gelatin capsules machine Training Service?
The equipment is installed after receiving the goods. We will communicate the use and maintenance of the equipment through remote video. At the same time we will also give a device instructions. The manual will have the related equipment use, maintenance, maintenance and other chapters workers reference. If there is a need for on-site engineer training services, we can also arrange for skilled engineers to visit the relevant services. The service will be charged according to the situation
4. Lead Time of the Softgel gelatin capsules machine?
We will arrange the production of the equipment after receiving 30% of the customer's advance payment. It takes 60 days to produce.
5 Softgel gelatin capsules machine certification?
The soft capsule sieving machine has CE certificate at present.
6 Softgel gelatin capsules machine other equipment that may be need?
1) Gelatin melting system: big gelatin melting tanks, small movable melter tank, one spot melting tank, gel servive tank, gel transfer tanks.
2) Filling material mixing system: big material mixing tanks. Small movable tanks. Homogzneire machine, emsulification machine. Material service tanks, material transfer tanks.
3) Softgel encapsulation machine. Big one, small one, middle one
4) Tumble dryer for softgel capsules drying or final drying or shaping
5) Dyring trays for capsules drying
6) Tooling for the softgel encapsulation machine. Die roller, medicne pump...
7) Tooling trolley to move the parts from one side to another side
8) Lab instrument to check and test the gel, material, softgel capsules.....
