Product Details
Place of Origin: China
Brand Name: JANGLI
Certification: CE
Model Number: JL-250III
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD 10000-100000 per one
Packaging Details: vacuum wooden packing
Delivery Time: 60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per year
Work Capacity: |
147,000 Caps/hour(8 Oval, 450~500mg, 5rpm) |
Die Roller Size: |
150x250mm (from Small,middle, Big) |
Running Speed: |
0-8rpm |
Power: |
15kw |
Size: |
2200x1000x2200 |
Weight: |
1500kg |
Plungers Number: |
20 24 28 Plungers |
Plungers Size: |
4mm 6mm 8mm 12mm 14mm |
Packing: |
Vacuum Wooden |
Work Capacity: |
147,000 Caps/hour(8 Oval, 450~500mg, 5rpm) |
Die Roller Size: |
150x250mm (from Small,middle, Big) |
Running Speed: |
0-8rpm |
Power: |
15kw |
Size: |
2200x1000x2200 |
Weight: |
1500kg |
Plungers Number: |
20 24 28 Plungers |
Plungers Size: |
4mm 6mm 8mm 12mm 14mm |
Packing: |
Vacuum Wooden |

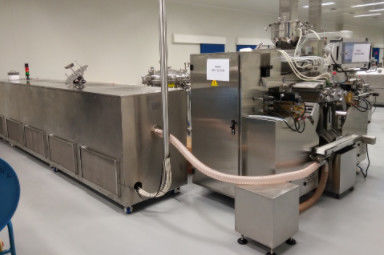

Cosmetic soft gelatin capsules filling machine
Background
Cosmetics are a huge market. As people pay more and more attention to personalized and differentiated products. Soft gelatin capsules for cosmetics were thus created. A cosmetic soft gelatin capsule is a cosmetic active ingredient packaged in a soft gelatin capsule. The utility model has the advantages of good sealing, easy carrying, convenient use, etc. . Compared with traditional bottled or bagged cosmetics, soft gelatin capsules can better protect the quality and stability of cosmetics and avoid oxidative deterioration caused by light, oxygen and other factors. At the same time, soft gelatin capsules can also be customized according to different formulations and efficacy for different types of cosmetics to provide more personalized packaging form.
According to the characteristics of cosmetics, soft capsules need to be properly in the content of the formula treatment, rubber dispensing treatment, as well as soft gelatin capsule production process differences.
For the increasing demand of cosmetic soft capsule machine. We have developed a new product, cosmetics soft gelatin capsule machine.
Description
Soft gelatin capsules filling for cosmetics is now more and more popular. You can find it at medicine store, super market, cosmetic store, snack shop, Gift shop. It made by one rotary die machine. Two gelatin ribbon will be cut into one capsules by die roll at the centre of machine.
We have different kinds of cosmetics soft gelatin capsules machine, from smallest, small, middle, big, biggest type machine. Each type machine could also be custm made based on specific requirements.
Technology Parameter
| Technical Specification | JLH-250III | JL-250II | JL-150III | JL-100II |
| Output | 88200/h(20#OB; 6rpm) | 58800/h(20#OB; 4rpm) | 17280/h(20#OB; 3rpm) | 8640/h(20#OB; 4rpm) |
| Die Roll Size | Φ150×250mm | Φ150×250mm | Φ150×120mm | Φ80×100mm |
| Die Roll Speed | 0-7rpm | 0-5rpm | 0-4rpm | 0~5rpm |
| Feeding Range | 0-2mL | 0-2mL | 0-2mL | 0-2mL |
| Feeding Variance | ±1.5% | ±1.5% | ±1.5% | ±1.5% |
| Overall Size | 2200*1000*1900 | 2040*960*1900 | 1800*900*1750 | 1440×660×1350 |
| Overall Weight | 1800Kg | 1500Kg | 650Kg | 400 Kg |
| Total Power | 12kw | 10kw | 6kw | 5kw |
| Electrical Power | 380V/220V/480V/110V/240V/208V/400V/415V 50HZ/60HZ 3Phase | |||
Main spare parts from famous brand company
Main Competitiveness of Our Machine
1. Stable production capacity:
More than 60 sets softgel machine sold all over the world. All of them work very well. No return.
2. High working speed:
The normal standard machine can work stably at 4 rpm at clients workshop.
Automatic gelatin ribbon thickness measurement device; Micro camber for die roll alignment; Editable Human Machine Interface; Remote control system;
What may be you concern?
Q: How about the delivery time?
A: Normally 60 days after confirmation.But the fast can be 25~30 days.
Q: Who will install it?
A: The installation and training service will be free once you choose our machine. Our experienced engineer will go to your side and install it and show you how to operate.
Q: What about the spare parts?
A: The spare parts will be enough for your 2 years consumption.If need more, contact us and supply you by express shipping.
